Concrete Transfer Pump Truck Boom Pipe High Pressure Low Pressure

Place of Origin CHINA
Brand Name SDBL
Certification ISO
Model Number DN125
Minimum Order Quantity 10
Price Negotiable
Packaging Details Bundle
Delivery Time Within 7 days after payment
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 2000 pieces each time

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Heat Treatment Induction Hardening Hardness HRC65-HRC68
Size DN125-OD:133mm Thickness 5.0mm/7.0mm
Length 3000mm/2000mm/1000mm Working Pressure 85BAR-125BAR
Color Red/White/Blue/Green
High Light

concrete transfer pump truck boom pipe


high pressure pump truck boom pipe


low pressure pump truck boom pipe

Leave a Message
Product Description

Concrete Transfer Pump Pipe Pump Truck Boom Pipe High Pressure Low Pressure Pump Pipe

1.Product description

The classification specifications of concrete pump pipes include: ground pump pipes, wear-resistant pipes for pump trucks, and mortar pump pipes.
(1)Ground pump pipe: Pump pipe is the abbreviation of concrete delivery pump pipe. It is a new type of construction engineering accessory product, which is divided into vehicle pump pipe and ground pump pipe.
(2)Wear-resistant pipe for pump truck: also called pump truck boom pipe, pump truck wear-resistant pipe, automobile pump pipe, it is installed on the pump truck boom, through which concrete is transported to a certain height and distance.
(3)Mortar pump pipe: The mortar pump is a cantilever-type single-stage single-suction centrifugal pump, which is specially designed for transporting corrosive media containing fine particles.


Detailed introduction of boom single layer tube

Heat treatment:Induction hardening Hardness:HRC60
Size: DN125-140 7.0mm Service Life:60000CBM
Length: 3000mm/2000mm/1000mm Thickness:7.0mm
Weight:48KGS/33.5KGS/17.5KGS Working pressure:85BAR
Surface treatment:Baking painting Material: 45Mn
Type: Single wall boom pipe



Specializing in the production of concrete pump pipes and accessories, with quenching, carburizing, heat treatment and other technologies.

(1)Selected raw materials,strong and sturdy.

(2)Made through high-frequency quenching treatment process.

(3)High hardness, increased volume.

(4)Using electrostatic spraying technology, the welding is full and smooth, making the whole more tidy and beautiful.

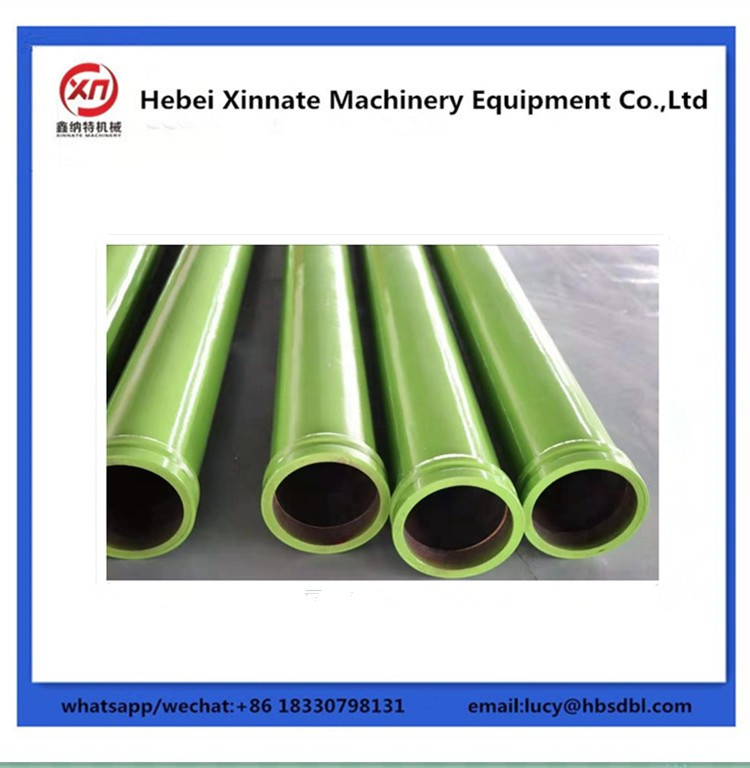

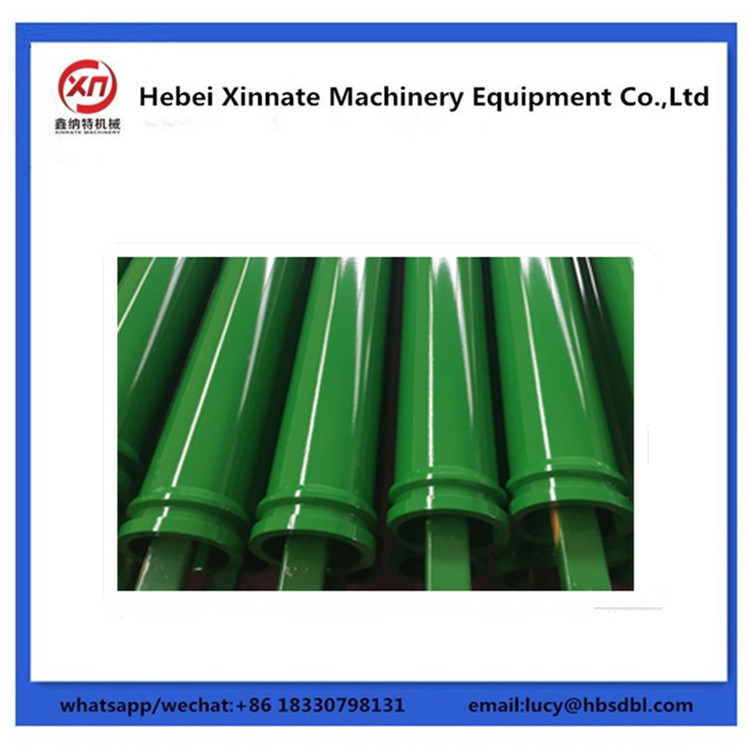

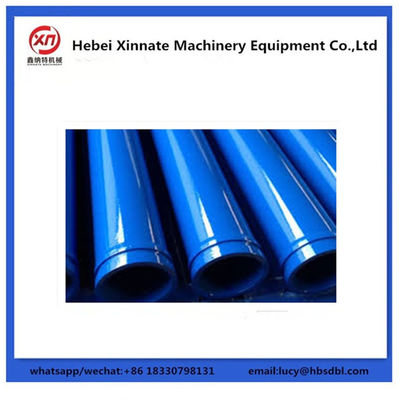

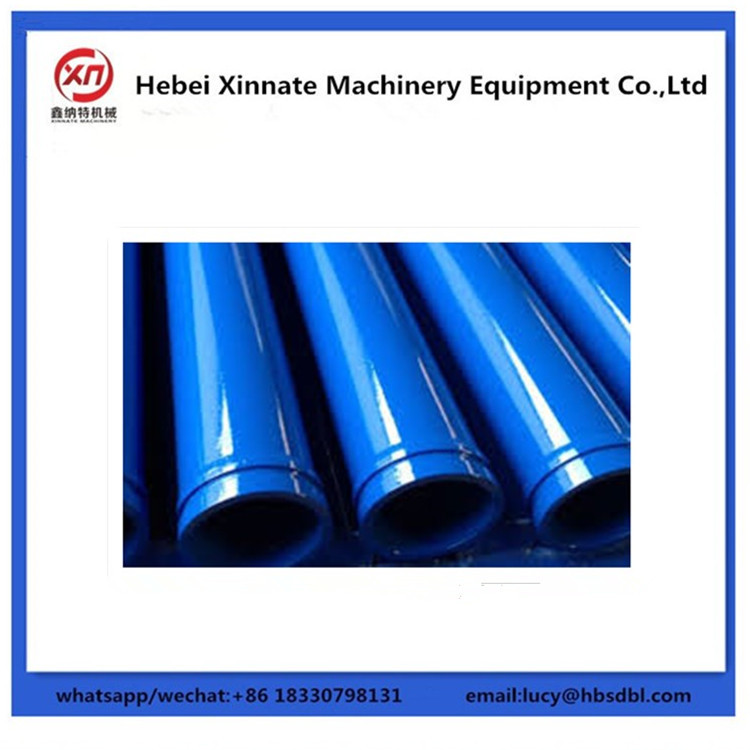

3.Concrete pump boom pipe picture show

Concrete Transfer Pump Truck Boom Pipe High Pressure Low Pressure 0

4.Pump tube production process

Concrete Transfer Pump Truck Boom Pipe High Pressure Low Pressure 1

5.Our factory can also provide other accessories besides pump pipes, such as elbows, pipe clamps, hoses, cleaning balls, hoppers, reducers, various hydraulic pumps and other accessories. Complete range of models to meet customers' various needs for pump truck accessories.

Concrete Transfer Pump Truck Boom Pipe High Pressure Low Pressure 2

Welcome your inquiry!
